DuplicateHandle works on sockets, mostly

WinAPI represents most “things” as HANDLEs: files, cross-process mutexes, threads, jobs, etc. Sockets, however, are a notable exception: while on Unix systems they’re no different from files, Windows denotes them by a different type: SOCKET.

The reason for this is that sockets are a userland abstraction provided by Winsock2, rather than a kernel primitive. At least on paper. As such, operating on them as on handles is incorrect. For example, MSDN says that even if casting a SOCKET to HANDLE and calling DuplicateHandle works, it messes up some refcounts.

This post explores just how far this difference lies, and when you can get away with using handle methods for sockets when you have to.

DuplicateHandle

Today I’ll focus on DuplicateHandle in particular, because it’s by far the most painful API to avoid. It’s the only way to freely move handles across processes in WinAPI:

BOOL DuplicateHandle(
  [in]  HANDLE   hSourceProcessHandle,
  [in]  HANDLE   hSourceHandle,
  [in]  HANDLE   hTargetProcessHandle,
  [out] LPHANDLE lpTargetHandle,
  [in]  DWORD    dwDesiredAccess,
  [in]  BOOL     bInheritHandle,
  [in]  DWORD    dwOptions
);

DuplicateHandle takes source and target process handles, so you can not only inject handles into other processes, but also steal them. I use this heavily in my IPC library, which allows processes to send and receive handles through streams, UDS-style. I inject handles into a broker process on send and steal them from the broker on receive. For instance, this allows a work-stealing process pool to operate on handles.

Winsock2 does offer a function to duplicate sockets – WSADuplicateSocketW – but its API is much more limited than DuplicateHandle. Compare:

int WSAAPI WSADuplicateSocketW(
  [in]  SOCKET              s,
  [in]  DWORD               dwProcessId,
  [out] LPWSAPROTOCOL_INFOW lpProtocolInfo
);

First, it doesn’t take a source process, so you can’t steal sockets. (Technically you can use CreateRemoteThread, but it’s less reliable, slow, and requires synchronization and more privileges.) That means that you can’t use the broker pattern and need to know which process you’re passing the socket to ahead of time.

Second, it takes the PID of the target process, not the handle, which means it has to reopen the process, asserting the PROCESS_DUP_HANDLE access right. This goes against the principle of least privilege – normally you can open a process and then drop the PROCESS_DUP_HANDLE right without invalidating already open process handles, or pass the handle to a less privileged context, but here you can’t do that. (It’s also racy unless you protect against PID reuse by keeping a process handle around.)

My goal for today is to achieve the effect of WSADuplicateSocketW through a low-level interface that can be made to work like DuplicateHandle.

How it’s made

The reason DuplicateHandle is (said to be) broken is that sockets are a userland abstraction. But what does that really mean?

Windows supports custom socket implementations, called Layered Service Providers, used by e.g. some proxies. There are two types of LSPs: IFS (installable file system) and non-IFS. IFS sockets are real OS-level handles, while non-IFS sockets are purely userland-side. Non-IFS LSPs are a nightmare: they work by redirecting Winsock2 methods in userland, like WSARecv, which means that they completely fail when passed to native APIs, like ReadFile. WSADuplicateSocketW for such sockets works because it’s one of the methods they redirect.

But it seems like Microsoft got fed up with crashes from broken non-IFS implementations, and LSPs have been deprecated entirely for 10 years now. So we can reasonably assume all sockets to be IFS-style native handles. In fact, multiple popular programs already do so: Rust’s tokio treats all sockets as IFS handles, and Zig uses a networking implementation that bypasses Winsock2 entirely.

Even MSDN mentions that SOCKET values can be accepted by some handle APIs:

The GetHandleInformation function can be used to determine if a socket handle was created with the WSA_FLAG_NO_HANDLE_INHERIT flag set.

So why shouldn’t DuplicateHandle be used for SOCKETs? Well, even though most socket details are maintained by the kernel, Winsock2 still has some internal bookkeeping. Winsock2 keeps a mapping from socket handles to that data, and creating sockets without going through Winsock2 doesn’t populate it, which can cause issues. Similarly, closing socket handles directly doesn’t free it.

Bookkeeping

We can inspect the data stored in userland by looking closer at the WSADuplicateSocketW API. The official way to pass sockets across processes involves running WSADuplicateSocketW to obtain a blob representing a socket, and then reassembling it on the other end with WSASocketW. Given that no one would trust userland to pass across kernel data, we can speculate that this blob contains exactly the userland accounting data, plus some way to access the kernel handle.

Since WSADuplicateSocketW takes the destination PID, it clearly somehow makes the kernel object accessible to the target process. I can see two possibilities:

• Perhaps the kernel maintains a list of processes that may access each socket, the blob contains a “token” to the handle, and WSASocketW materializes that token into a handle.
• Or perhaps it’s much simpler and WSADuplicateSocketW just injects the handle directly into the target process.

My friend Yuki wrote a script to check which hypothesis is true:

// ...
SOCKET sock;
if (INVALID_SOCKET == (sock = socket(AF_INET, SOCK_DGRAM, IPPROTO_UDP))) {
    printf("Error at socket(): %d\n", WSAGetLastError());
    goto err_wsa;
}

// ...

PROCESS_INFORMATION pi;
if (0 == CreateProcessA(
    NULL, "cmd /c timeout /nobreak -1 >nul",
    NULL, NULL, FALSE, 0, NULL, NULL, &si, &pi
)) {
    printf("Error at CreateProcess(): %lu\n", GetLastError());
    goto err_wsa;
}
puts(">> forked");

getch();

WSAPROTOCOL_INFOW wpi;
ZeroMemory(&wpi, sizeof(wpi));
if (SOCKET_ERROR == WSADuplicateSocketW(sock, pi.dwProcessId, &wpi)) {
    printf("Error at WSADuplicateSocket(): %d\n", WSAGetLastError());
    goto err_wsa;
}
puts(">> duped");
// ...

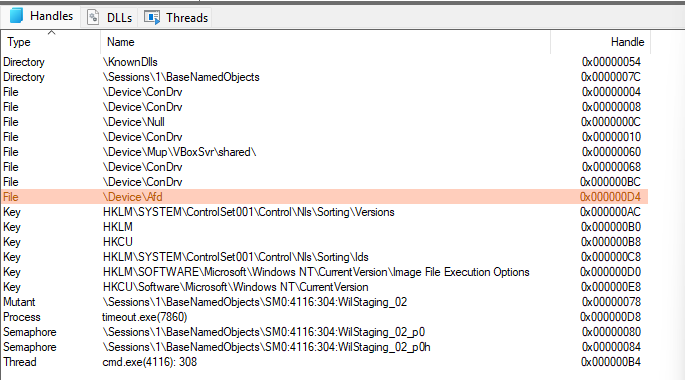

A quick experiment shows that a new handle appears in the target process after WSADuplicateSocketW even without the corresponding WSASocketW in the receiver, so the latter guess is correct:

The \Device\Afd path denotes the Another Fucking Driver Ancillary Function Driver, which implements sockets.

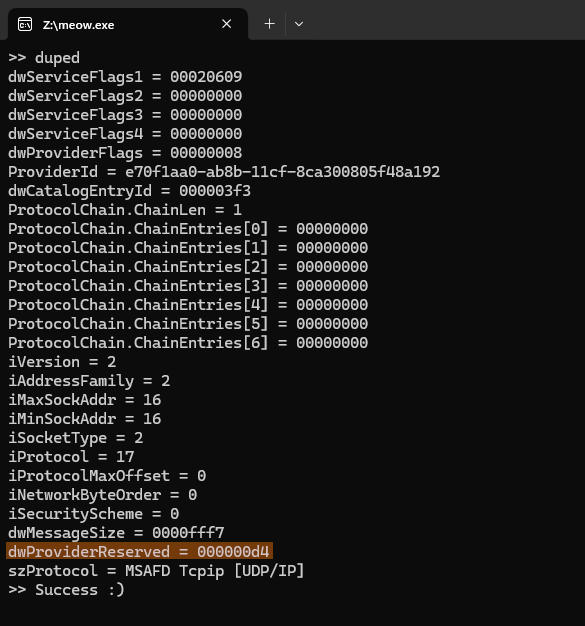

If we look at the blob, we can actually find the number that denotes the handle:

The blob structure is documented, and if we look at the docs, we’ll find that dwProviderReserved is pretty much the only opaque field, and it’s the only place where a compliant IFS LSP would be able to store a handle.

In fact, if we look at the docs for implementing providers, we’ll find exactly this advice:

The dwProviderReserved member of the WSAPROTOCOL_INFO structure is available for the service provider’s use, and may be used to store any useful context information, including a duplicated handle.

Implementation

So here’s how WSADuplicateSocketW seems to be implemented at the moment:

1. Copy process-independent userland data into the blob.
2. Inject the handle (HANDLE)socket into the target process.
3. Copy the resulting handle into dwProviderReserved.

On the receiving side, WSASocketW undoes this process:

1. Extract the handle from dwProviderReserved.
2. Copy userland data from the blob, associating it with the handle.
3. Return (SOCKET)handle.

Lazy init

But there’s a small hitch.

Since using DuplicateHandle doesn’t populate userland data, kernel APIs like ReadFile still work on the resulting socket, but people say that Winsock2 APIs like WSARecv return WSAENOTSOCK. But then I saw a comment that contradicts this claim: it shows that WSAAccept works on an inherited socket handle without passing the userland data by hand. So I wrote a test to figure out where it gets the data from:

// Not shown: perform a TCP connection to load all the necessary DLLs and initialize globals

// `DuplicateHandle` a TCP socket
let clone_handle = unsafe {
    BorrowedHandle::borrow_raw(socket.as_raw_socket() as RawHandle)
        .try_clone_to_owned()
        .expect("clone")
        .into_raw_handle() as RawSocket
};
drop(socket);
let socket = unsafe { TcpListener::from_raw_socket(clone_handle) };

// Attempt #1 to accept a connection on the new socket
let (mut connection, _) = socket.accept().unwrap();
connection.write_all(b"Hello, world!\n").unwrap();
connection.flush().unwrap();
drop(connection);

// Attempt #2 to accept a connection on the new socket
let (mut connection, _) = socket.accept().unwrap();

Since Winsock2 is a thin layer on top of AFD, I used NtTrace to see which ioctls it runs. Attempt #2 gives a clean trace:

NtDeviceIoControlFile(FileHandle=0xfc, Event=0xec, ApcRoutine=null, ApcContext=null, IoStatusBlock=0xac2e95f2f0 [0/0x14], IoControlCode=0x0001200c, InputBuffer=null, InputBufferLength=0, OutputBuffer=0xac2e95f5c0, OutputBufferLength=0x14) => 0
NtCreateFile(FileHandle=0xac2e95f100 [0x100], DesiredAccess=WRITE_DAC|SYNCHRONIZE|GENERIC_READ|GENERIC_WRITE, ObjectAttributes="\Device\Afd\Endpoint", IoStatusBlock=0xac2e95f130 [0/0], AllocationSize=null, FileAttributes=0, ShareAccess=3, CreateDisposition=3, CreateOptions=0, EaBuffer=0xac2e95f180, EaLength=0x39) => 0
NtDeviceIoControlFile(FileHandle=0xfc, Event=0xec, ApcRoutine=null, ApcContext=null, IoStatusBlock=0xac2e95f2f0 [0/0], IoControlCode=0x00012010, InputBuffer=0xac2e95f2b8, InputBufferLength=0x10, OutputBuffer=null, OutputBufferLength=0) => 0

There are two ioctls here: 0x0001200c (IOCTL_AFD_WAIT_FOR_LISTEN) and 0x00012010 (IOCTL_AFD_ACCEPT).

Let’s see if attempt #1 does anything different:

NtQueryObject(ObjectHandle=0xfc, ObjectInformationClass=4 [ObjectHandleFlagInformation], ObjectInformation=0xac2e95f5d0, Length=2, ReturnLength=null) => 0
NtDeviceIoControlFile(FileHandle=0xfc, Event=0xec, ApcRoutine=null, ApcContext=null, IoStatusBlock=0xac2e95f078 [0/0xa8], IoControlCode=0x00012043, InputBuffer=null, InputBufferLength=0, OutputBuffer=0xac2e95f0a0, OutputBufferLength=0x100) => 0
NtDeviceIoControlFile(FileHandle=0xfc, Event=0xec, ApcRoutine=null, ApcContext=null, IoStatusBlock=0xac2e95efc0 [0/0x10], IoControlCode=0x00012037, InputBuffer=0xac2e95efe0, InputBufferLength=4, OutputBuffer=0xac2e95efb0, OutputBufferLength=0x10) => 0
NtDeviceIoControlFile(FileHandle=0xfc, Event=0xec, ApcRoutine=null, ApcContext=null, IoStatusBlock=0xac2e95f2f0 [0/0x14], IoControlCode=0x0001200c, InputBuffer=null, InputBufferLength=0, OutputBuffer=0xac2e95f5c0, OutputBufferLength=0x14) => 0
NtCreateFile(FileHandle=0xac2e95f100 [0x110], DesiredAccess=WRITE_DAC|SYNCHRONIZE|GENERIC_READ|GENERIC_WRITE, ObjectAttributes="\Device\Afd\Endpoint", IoStatusBlock=0xac2e95f130 [0/0], AllocationSize=null, FileAttributes=0, ShareAccess=3, CreateDisposition=3, CreateOptions=0, EaBuffer=0xac2e95f180, EaLength=0x39) => 0
NtDeviceIoControlFile(FileHandle=0xfc, Event=0xec, ApcRoutine=null, ApcContext=null, IoStatusBlock=0xac2e95f2f0 [0/0], IoControlCode=0x00012010, InputBuffer=0xac2e95f2b8, InputBufferLength=0x10, OutputBuffer=null, OutputBufferLength=0) => 0

We can recognize IOCTL_AFD_WAIT_FOR_LISTEN and IOCTL_AFD_ACCEPT here, too, but prior to that there are a couple more requests:

• NtQueryObject(ObjectHandleFlagInformation), which outputs whether the handle is a) inheritable, b) protected from close.
• ioctls 0x00012043 (IOCTL_AFD_GET_CONTEXT) and 0x00012037 (IOCTL_AFD_GET_TDI_HANDLES).

So on modern Windows versions, there is actually no downside to creating a socket while bypassing Winsock2 – it will lazily fetch the necessary information, supposedly mostly via IOCTL_AFD_GET_CONTEXT.

Of course, you still need to use closesocket to make sure the userland data is freed, so if you use DuplicateHandle, avoid DUPLICATE_CLOSE_SOURCE unless you know that the source process has never passed the socket to Winsock2.

Patterns

Let’s see how this can be applied to some common problems.

Socket inheritance just works, and so does stealing a socket from another process without cooperation.

The broker pattern can be directly implemented with DuplicateHandle: the sender copies the handle into the broker with DuplicateHandle and the receiver steals it from the broker with DUPLICATE_CLOSE_SOURCE, which is fine because the broker doesn’t pass it to Winsock2. The sender, however, needs to use closesocket instead of DUPLICATE_CLOSE_SOURCE.

Emulators

I also checked how non-Microsoft Winsock2 implementations handle this.

Wine implements WSADuplicateSocketW similarly to Windows, but stores the handle in dwServiceFlags3 instead of dwProviderReserved. This is inconsistent, but all Winsock2 functions forward requests to the “kernel” with NtDeviceIoControlFile, and there seems to be no userland bookeeping, so DuplicateHandle works all the same.

WSADuplicateSocketW from ReactOS stores the socket handle in dwServiceFlags4, but it also stores a handle to shared memory in dwServiceFlags3. It implements more parts of AFD in userland than both Windows and Wine. This is frankly concerning, e.g. this allows one process holding a socket to crash another process. The memory is mostly used to share the current socket connection status and the error code for SO_ERROR (with no synchronization, if I may add), which to me looks broken by design. Information doesn’t seem to be fetched lazily. So this fails on ReactOS.

Compatibility

Let’s sum up the information we have.

MS documents that some handle APIs can be used on sockets, and has deprecated mechanisms that can break this feature. It advises LSP implementers to implement socket duplication by duplicating the handle. WSAENOTSOCK used to be raised for inherited sockets, but they work correctly on modern versions, as a result of what looks like a deliberate change. If this isn’t tacit support, I don’t know what is.

Given that this has worked for at least a couple years, and that it works on Wine, I’d say it’s reasonable to use it when a nicer alternative is unavailable.
